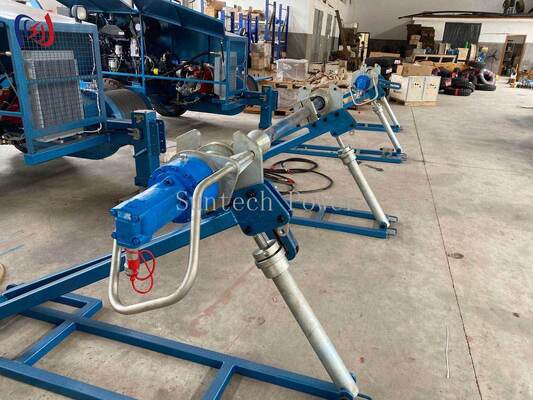

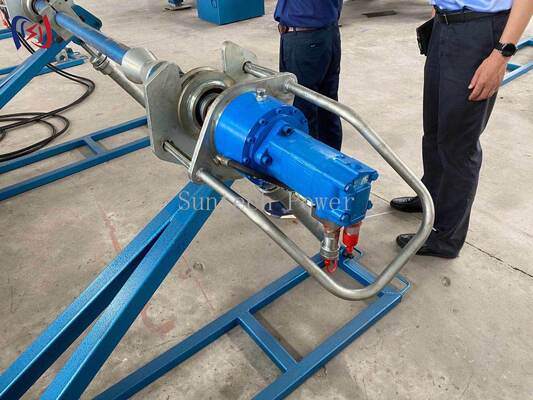

Name: Hydraulic Conductor Reel Stand with 5000kg Capacity and 45rpm Max Speed for Safe Handling
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: SIPZ-5H
Price: 285,715.00 USD
Availability: InStock

ميزات صالة عرض منتوج وصف طلب عرض أسعار

ميزات

مواصفات

اسم: تقف بكرة موصل الهيدروليكية

رقم الصنف: 15151

نموذج: SIPZ-5H

السرعة القصوى: 45 دورة في الدقيقة

وزن: 270-350 كجم

ضمان: 1 سنة

إبراز:

Hydraulic Lifting Conductor Reel Stand,5000kg Capacity Cable Reel Stand,45rpm Max Speed Conductor Drum Stand

5000kg Capacity Cable Reel Stand

45rpm Max Speed Conductor Drum Stand

معلومات اساسية

مكان المنشأ: نينغو

اسم العلامة التجارية: Sunatech

إصدار الشهادات: ISO

رقم الموديل: SIPZ-5H

شروط الدفع والشحن

تفاصيل التغليف: حالة الخشب الرقائقي

وقت التسليم: 3-7 أيام

شروط الدفع: الاعتماد المستندي، تي/تي

القدرة على العرض: 1000 جهاز كمبيوتر شخصي/شهر

صالة عرض

Hydraulic Conductor Reel Stand with 5000kg Capacity and 45rpm Max Speed for Safe Handling

منتوج وصف

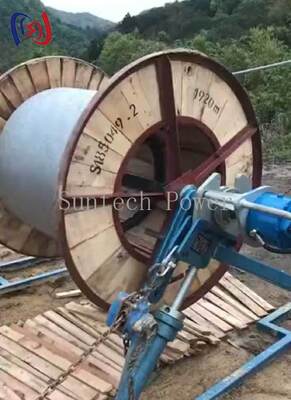

Heavy Duty Hydraulic Conductor Reel Stands for Safe Handling of Large Overhead Conductor Reels

Heavy Duty Hydraulic Conductor Reel Stands are engineered specifically for the demanding task of handling large, heavy reels of overhead electrical conductor used in transmission and distribution line construction. These specialized stands provide a powerful, safe, and efficient alternative to manual handling and basic mechanical jacks. The integrated hydraulic system allows a small crew to effortlessly lift massive conductor reels to the optimal working height, ensuring a smooth and controlled pay out during the critical stringing process. Designed for the unique challenges of power line work, these stands enhance safety, protect valuable conductor assets from damage, and significantly improve the productivity and precision of overhead line installation projects.

Technical Specifications

Item number	15151	15152
Model	SIPZ-5H	SIPZ-7H
Applicable reel diameter (mm)	Φ1250～2240	Φ1250～2500
Max width of coil (mm)	1400	1400
Diameter of axle hole (mm)	Φ80-125	Φ80-125
Maximum weight (kg)	5000	7000
Max working torque (N.m)	1200	2000
Max Speed (rpm)	45	45
Axle diameter	Φ76	Φ76
Weight (kg)	270	350
Length of hydraulic tube	13	13

Key Features & Benefits

Hydraulic Lifting for Heavy Reels The hydraulic lifting mechanism effortlessly raises extremely heavy conductor reels—often weighing several tons—to the ideal working height. This system eliminates dangerous manual lifting, allowing a single operator to safely position a reel with minimal effort.
Exceptional Stability for Stringing Operations Built with heavy gauge steel frame and wide reinforced base, these stands provide unwavering stability during stringing processes, preventing shifting or tipping.
Smooth and Controlled Conductor Pay Out High capacity bearings allow the reel to rotate smoothly with minimal resistance, maintaining consistent tension and preventing jerking, tangling, and kinking.
Enhanced Worksite Safety Dramatically improves safety by eliminating hazardous aspects of reel handling, preventing back injuries, and minimizing risks of conductors whipping or snapping.
Optimal Reel Height Adjustment Hydraulic system allows precise height adjustment to align with stringing blocks and tensioner, optimizing conductor path and reducing friction.
Protection of Valuable Conductor Keeps reels elevated and clean, preventing ground contact damage and preserving the conductor's mechanical strength and electrical properties.
Durable and Low Maintenance Design Constructed from high-strength, corrosion-resistant materials to withstand harsh outdoor construction conditions with minimal maintenance requirements.
Improved Operational Efficiency Quick and easy setup with hydraulic power reduces crew time on preparatory work and allows for faster stringing speeds.
Essential for Modern Power Grid Construction Standard equipment for professional utility work, representing commitment to safety, quality, and efficiency in electrical infrastructure construction.

Investing in a high quality Hydraulic Conductor Reel Stand is a direct investment in the safety of your personnel, the protection of your assets, and the overall productivity of your overhead line projects.
