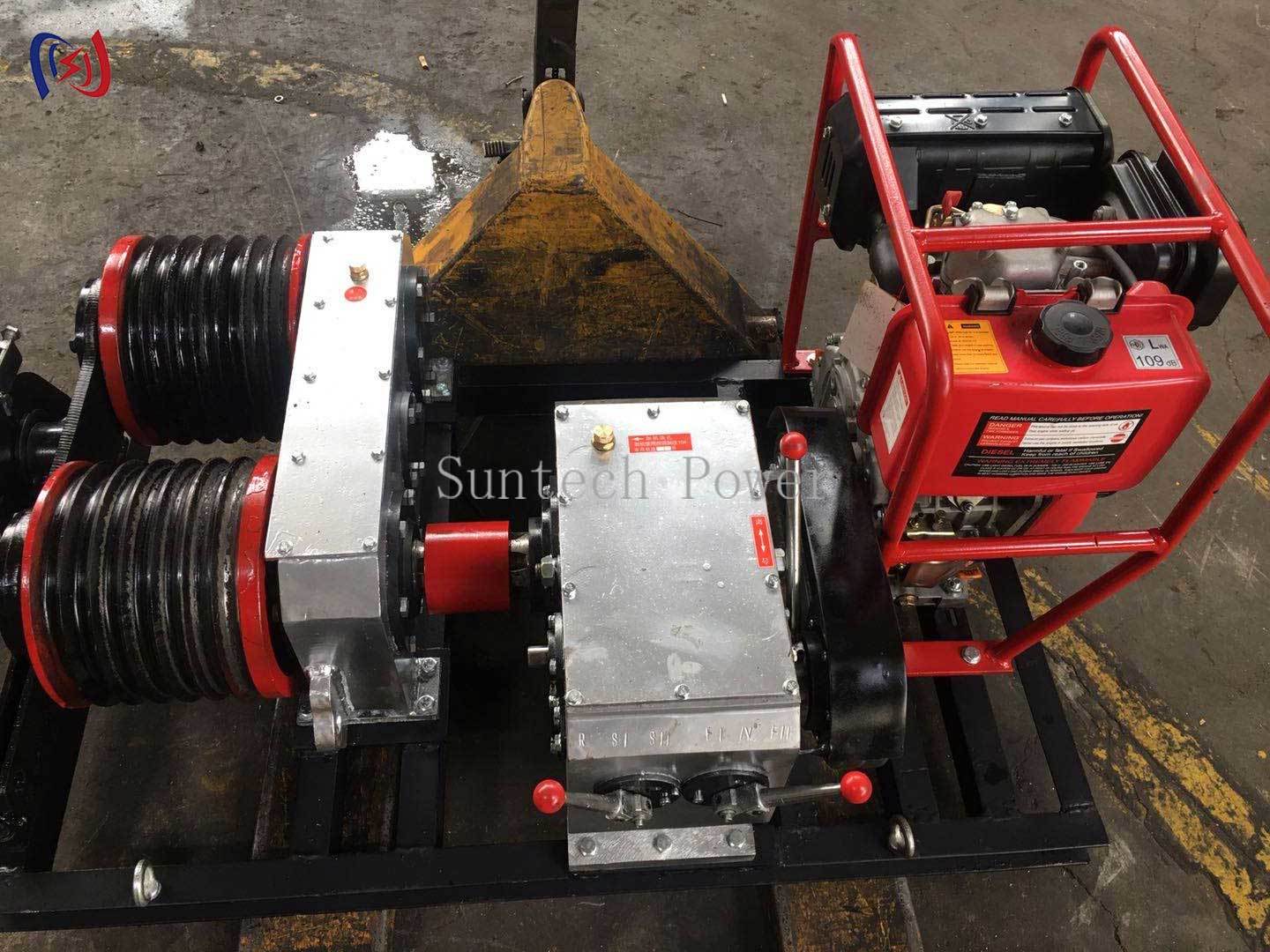

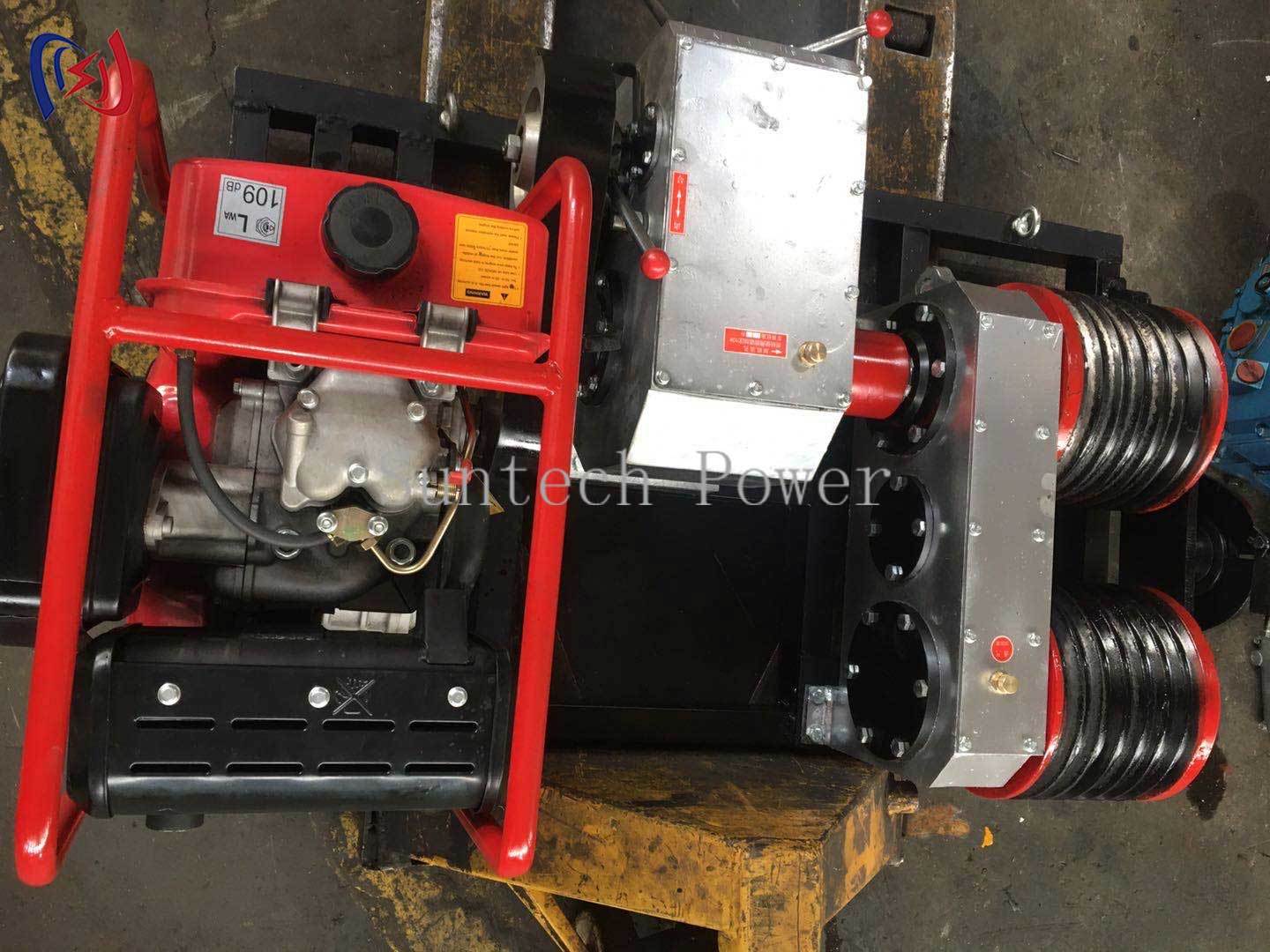

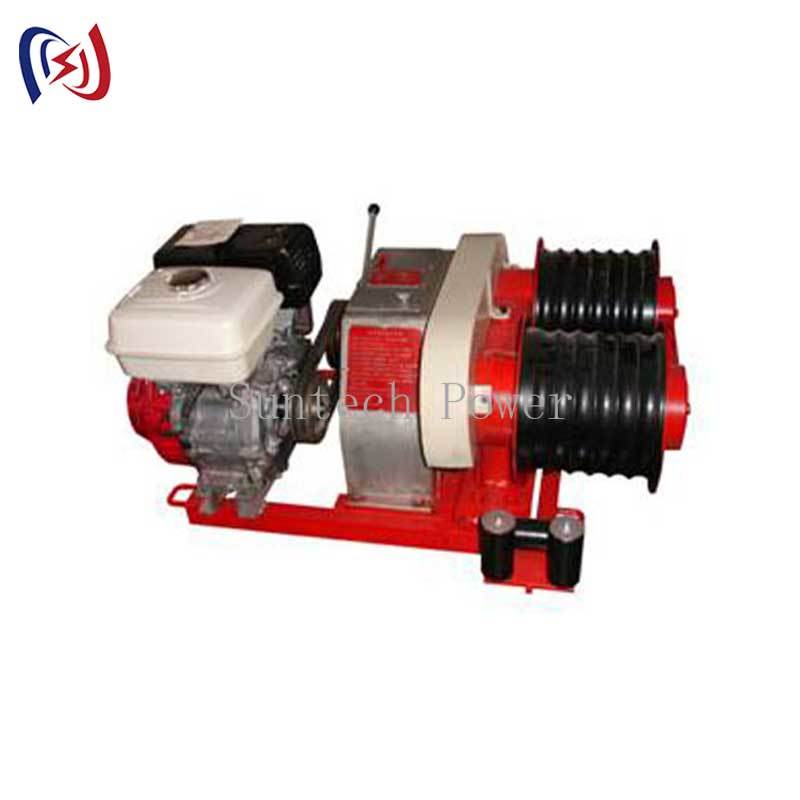

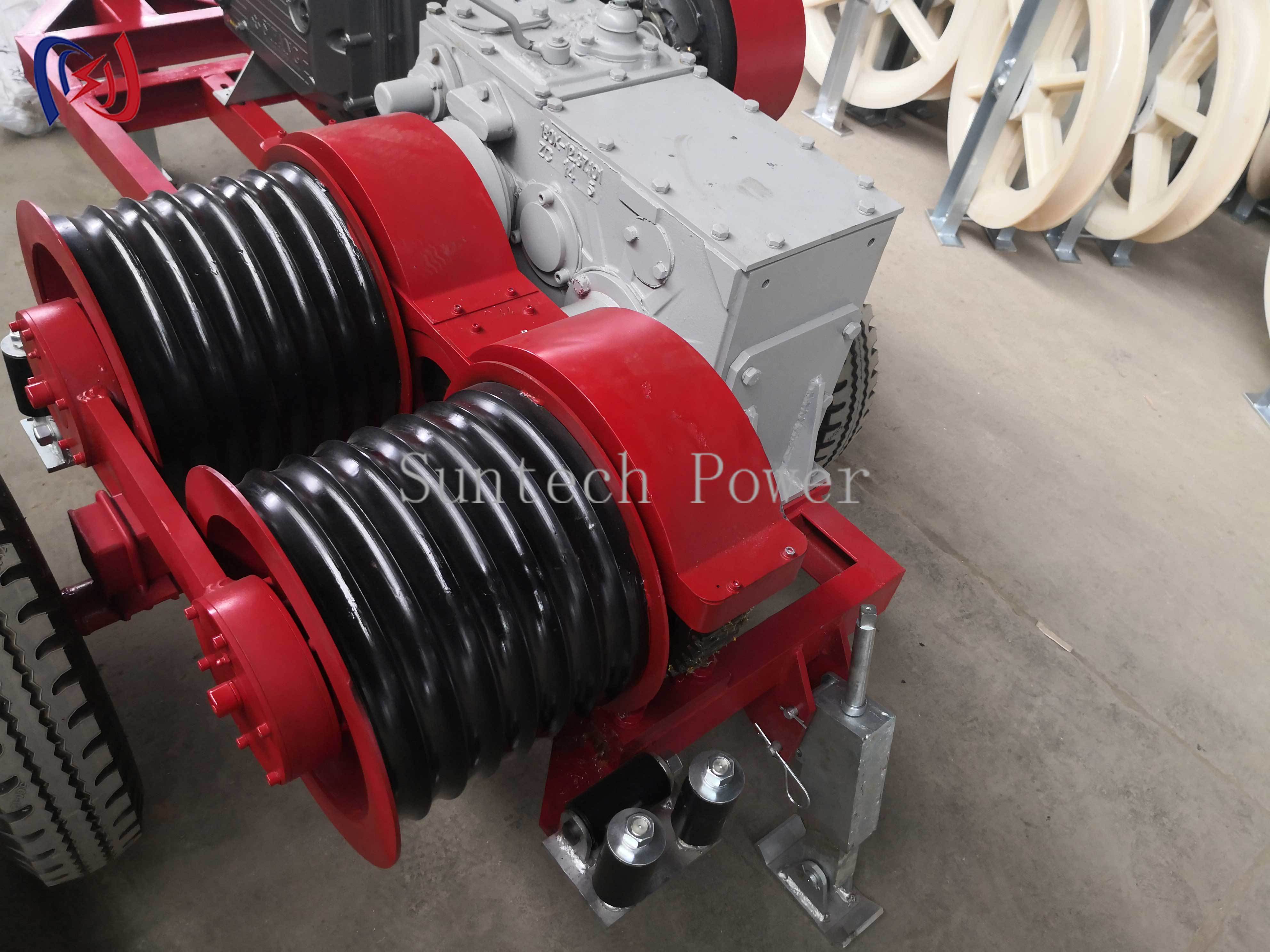

Double Drum Winch Professional Tool For Simultaneous Cable And Rope Handling
1. Professional Dual Drum Performance
Independent drum operation for simultaneous dual line handling
8-ton capacity per drum for heavy load applications
Precision control for synchronized or independent drum operation
2. Industrial-Grade Construction
Twin forged steel drums withstand extreme working loads
Hardened steel gears for extended durability
Corrosion-resistant coating for marine environments
3. Advanced Safety Features
Dual automatic braking systems
Independent overload protection for each drum
Emergency stop function with quick release
4. Ergonomic Design Advantages
Centralized control panel for easy operation
Balanced weight distribution reduces tipping risk
Low vibration operation for extended use
5. Comprehensive Applications
Ideal for:
Marine towing and mooring
Offshore platform operations
Heavy construction lifting
Industrial material handling
Complex rigging scenarios
6. Low Maintenance Operation
Self-lubricating drum bearings
Easy-access maintenance points
Sealed hydraulic systems
7. Productivity Enhancements
Simultaneous dual line operation
40% faster than single drum systems
Independent speed control for each drum
8. Field Deployment Ready
Compact footprint for space-limited areas
Weather-resistant control housing
Quick deployment system
9. Professional Certifications
Meets ISO 9001 and DNV standards
ABS certified for marine use
Recommended by heavy industry experts
10. Long-Term Value
3:1 lifespan advantage over single drum winches
Reduces equipment requirements by 50%
Minimizes operational downtime
11. Power Options
Electric motor drive systems
Hydraulic power pack versions
Diesel engine configurations
12. Environmental Benefits
Energy efficient operation modes
Low emission options available
Reduced oil leakage design
13. User-Friendly Features
Color-coded control indicators
Drum rotation sensors
Remote control capability
14. Package Contents
Double drum winch main unit
Dual cable/rope guidance systems
Complete operation manual
Maintenance tool kit
15. Industry Applications
Offshore oil and gas
Shipbuilding and repair
Heavy construction
Mining operations
Utility installation
16. Performance Advantages
50% more efficient than single drum systems
Superior load balancing capability
Works in space-constrained areas
17. Technical Innovations
Patented drum synchronization system
Smart load distribution technology
Anti-fouling drum design
18. Purchase Options
Available through industrial suppliers
Custom configuration services
Global rental network
19. Training Resources
VR simulation training modules
On-site operator certification
24/7 technical support
20. Quality Assurance
Each drum individually tested
Marine-grade component selection
5-year structural warranty
| Item No. | 09151 | 09152 | 09162 | |
| Model | JJCS-50J | JJQS-50J | JJCS-50T | |
| Engine | Model |
KF186A Diesel Engine |
Honda 390 Gasoline Engine |
S195G Diesel Engine |
| Power(KW) | 6.3 | 6.6 | 9 | |
| Speed(RPM) | 2600 | 3600 | 2000 | |
|
Pull force (KN)/ Speed (M/MIN) |
Slow | 50*6.0,30/10 | 50/6.0,30/10 | 50/3.1,40/9.6 |
| Moderate | / | / | 45/7.1,17/22.3 | |
| Fast | 13/23,10/30 | 13/23,10/30 | 33/11.3,10/35.6 | |
| Reverse | -/5,-/17 | -/5,-/17 | -/7.35 | |
| Drum bottom of groove diameter | Φ230 | Φ230 | Φ300 | |
| outline size(MM) | 1280*770*600 | 1280*770*600 | 2440*1300*1140 | |
| Weight(KG) | 280 | 270 | 700 | |
